At IPS, one of the most common questions we hear is:
“How fast can your slat counter run?” or “How many bottles per minute?”
It’s a great question—with a nuanced answer. The short version? It depends. The more complete version involves some engineering, some real-world insight, and a little math.
When it comes to production speed for tablet counters, there’s a delicate balance between tablet size, tablet shape, bottle size, the number of bottles under the filler (also called “divisions”), and machine size. All of these factors impact how fast a slat counter can run effectively and reliably.
Tablet Size, Type, and Shape Matter
Understanding these base calculations is crucial for pharmaceutical manufacturers looking to optimize their production lines. When we talk about slats per second, we’re referring to the fundamental movement of our counting system – the precision that allows for accurate tablet distribution. This base capability sets the foundation for all subsequent calculations and represents the theoretical maximum speed under perfect conditions. However, as with all precision machinery, theoretical maximums must be balanced against practical considerations.
Some tablets drop more easily than others. Round tablets are simpler to fill than elongated or “football”-shaped ones. If the tablets are large or awkwardly shaped, it’s wise to reduce speed—not just for performance, but for product integrity. We often quote our tablet counters running comfortably at 65% speed, accounting for both tablet handling and bottle transfer time.
Flexibility in Setup
Configuration flexibility is one of the most powerful features of our system. Each slat counter setup is carefully designed to address specific product requirements. Our most popular tablet counter is typically configured for 18 bottles, but depending on your needs, we can adjust for 14, 20, or other custom setups.
- 14-bottle setups are ideal for vitamin manufacturers, who often deal with larger, tablets and bottles.
- 18 bottles setups are the most flexible for most customers.
- 20-bottle configurations are great for pharmaceuticals, especially when handling small tablets
The key isn’t just raw speed—it’s finding the optimal balance point where speed meets reliability. Each configuration is a carefully calculated equation of time, movement, and precision. In the pharmaceutical industry, where accuracy and consistency are paramount, understanding these mathematical relationships isn’t just academic—it’s essential for operational excellence.

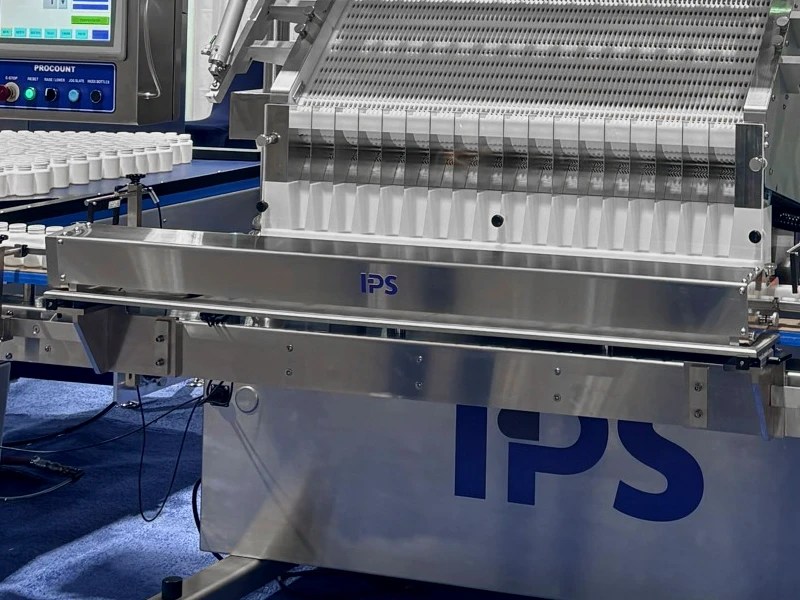

Breaking Down the Numbers: Slat-Based Tablet Counters
Each machine has a set number of divisions—think of these as bottle lanes. If a slat machine is set up for 18 bottles, and each slat drops five tablets, and the machine cycles at eight slats per second, you can start to get a sense of throughput:
Raw Speed Potential:
- 8 slats per second (maximum capability)
- 5 tablets per slat drop
- Simple math: 8 slats × 5 tablets = 40 tablets/second potential
- That’s 2,400 tablets per bottle x 18 bottles is 43,200 tablets per minute!

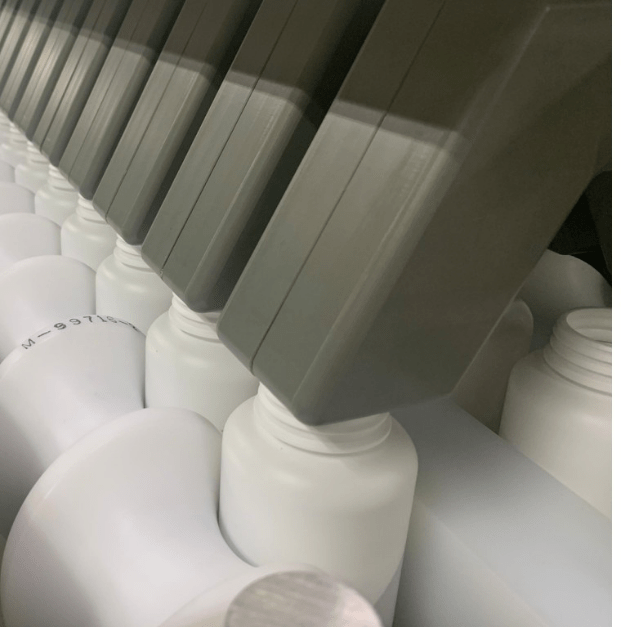

But it’s not just about slat speed. Once the slats finish dropping tablets, the machine needs to index the bottles out and bring new ones in. This usually takes about 100–200 milliseconds per bottle, depending on the configuration. Plus, you need a brief pause (around 250 milliseconds) before moving the bottles to ensure the final tablets cleanly land in their bottles:
Bottle Movement Mechanics:
- Indexing time: 150 ms per bottle
- For an 18-bottle setup:
- 18 bottles × 150ms = 2.7 seconds for a complete index of 18 bottles.
- Additional 250ms (quarter second) required for final tablet drop
Total cycle time: Slat filling time + bottle indexing time + final drop allowance (delay)
The science of bottle movement is where theoretical speed meets practical application. Indexing time – the precise moment when bottles must move into and out of position – is a critical factor that can’t be rushed without compromising accuracy. This careful choreography of movement ensures that each bottle is perfectly positioned for filling. The additional quarter-second allowance for the final tablet to drop might seem minimal, but it’s essential for maintaining count accuracy.
Putting it all together:
100 count #3 capsule into (18x) 150cc bottle running at 75% speed yields:
Slats: 100/5=20/6(slats per sec) = 3.33 seconds.
18 bottles at 150ms/bottle = 2.7 seconds.
Time to allow last tablet to drop in the bottle = .250ms.
Total time per cycle = 6.28 seconds or 9.55 cycle per minute = 170+ bottles per minute.
Dual Lane Tablet Counters:
Dual Lane Slat Counter s offer an advantage over single lane counters when running smaller counts. The dual lane slat counter stages a second set of bottles under the filler, ready to accept tablets as soon as the first set of bottles have reached the correct count. A mechanical diverter is employed to divert the tablets between the front or rear lane of bottles. This reduces the “bottle index” time to less than 1 second allowing more slat running time.
Using the example above:
100 count #3 capsule into (18x) 150cc bottle running at 75% speed yields:
Slats: 100/5 (Cavities per Division) = 20/6 (slats per second) = 3.33 seconds.
18 bottles at 150ms/bottle = .750 ms.
Time to allow the last tablet to drop in the bottle = .250ms.
Total time per cycle = 6.28 seconds or 13.84 cycles per minute = 249+ bottles per minute.
There’s no one-size-fits-all answer—but that’s exactly why customers choose IPS. We don’t just build machines; we build systems designed around your product, your speed, and your efficiency goals. We’re always happy to run the numbers with you.
